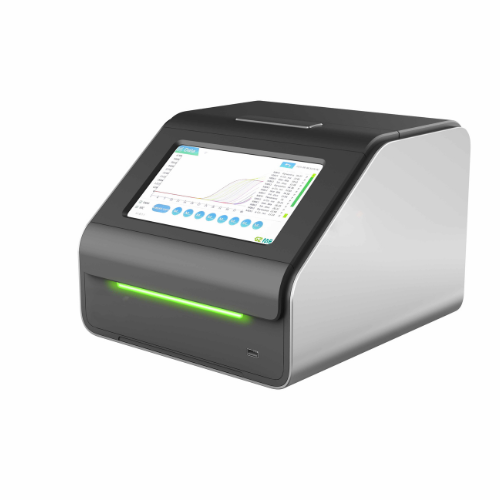

AmpliFire-D8 Real Time Fluorescent Amplification Detection System
Product Features
Multi-Color Fluorescence Channels: Supports FAM, ROX, CY5, and VIC for versatile detection.
High Capacity: 16 x 0.2mL amplification tube positions for efficient sample processing.
High Sensitivity: Achieve a minimum detection limit of 50 copies.
Fast Thermal Cycling: Self-developed temperature control module completes 40 amplification cycles in just 35 minutes.
Rapid Heating & Cooling: Average heating speed ≥8.0°C/second and cooling speed ≥5.0°C/second for quick thermal transitions.
Built-In Infrared Barcode Scanning: Automatic identification and data capture with integrated infrared scanner.
Advanced PCR Algorithm: Proprietary PCR algorithm for enhanced reaction efficiency and accuracy.
Product Parameters
| Sample Capacity | Supports 16×0.2 mL amplification tubes (2 rows of 8-tube strips) | Heated Lid Temperature Range | 30-120℃ |
| Reaction System | 20-100uL | Fluorescence Intensity Detection Repeatability | CV≤2% |
| Fluorescent Dyes | F1: FAM, SYBR Green I, etc. F2: HEX, VIC, JOE, etc. F3: ROX, Texas Red, etc. F4: Cy5, etc. | sample detection repeatability | CV≤3% |
Metal Block Temperature Range | 10-100℃ | Sample Linearity | Linear regression coefficient r ≥ 0.990 |
Block Temperature Uniformity | ≤1℃ | Fluorescence Linearity | Linear regression coefficient r ≥ 0.990 |
| Block Temperature Control Accuracy | ≤0.2℃ | Display Screen | 10.1-inch Touch LCD Display |
Heating Rate (Average) | ≥6.5℃/s | Power Supply | 100-240VAC 50/60Hz Max800VA |
| Heating Rate (Max) | ≥8.5℃/s | Interfaces | USB port, RS-232 serial port, Ethernet port |
Cooling Rate (Average) | ≥4.2℃/s | Interface | 300mm (W) x 370mm (D) x 190mm (H) |
| Cooling Rate (Max) | ≥6.1℃/s | Weight | 10.4 kg |
