Key Technical Specifications

• Advanced wide-range high-frequency power control, compatible with global power grids. A 16-bit MCU with PWM speed control precisely regulates voltage, current, speed, and centrifugation time for reliable operation and low noise.

• Durable permanent-magnet DC motor with a speed range of 500–12,000 rpm and ±9% accuracy. Speed can be adjusted in 500 rpm increments; timer range: 1–99 min or 1–59 sec.

• Fast acceleration and deceleration for efficient operation.

• High-strength housing and rotor materials with chemical resistance. The rotor supports high-temperature sterilization.

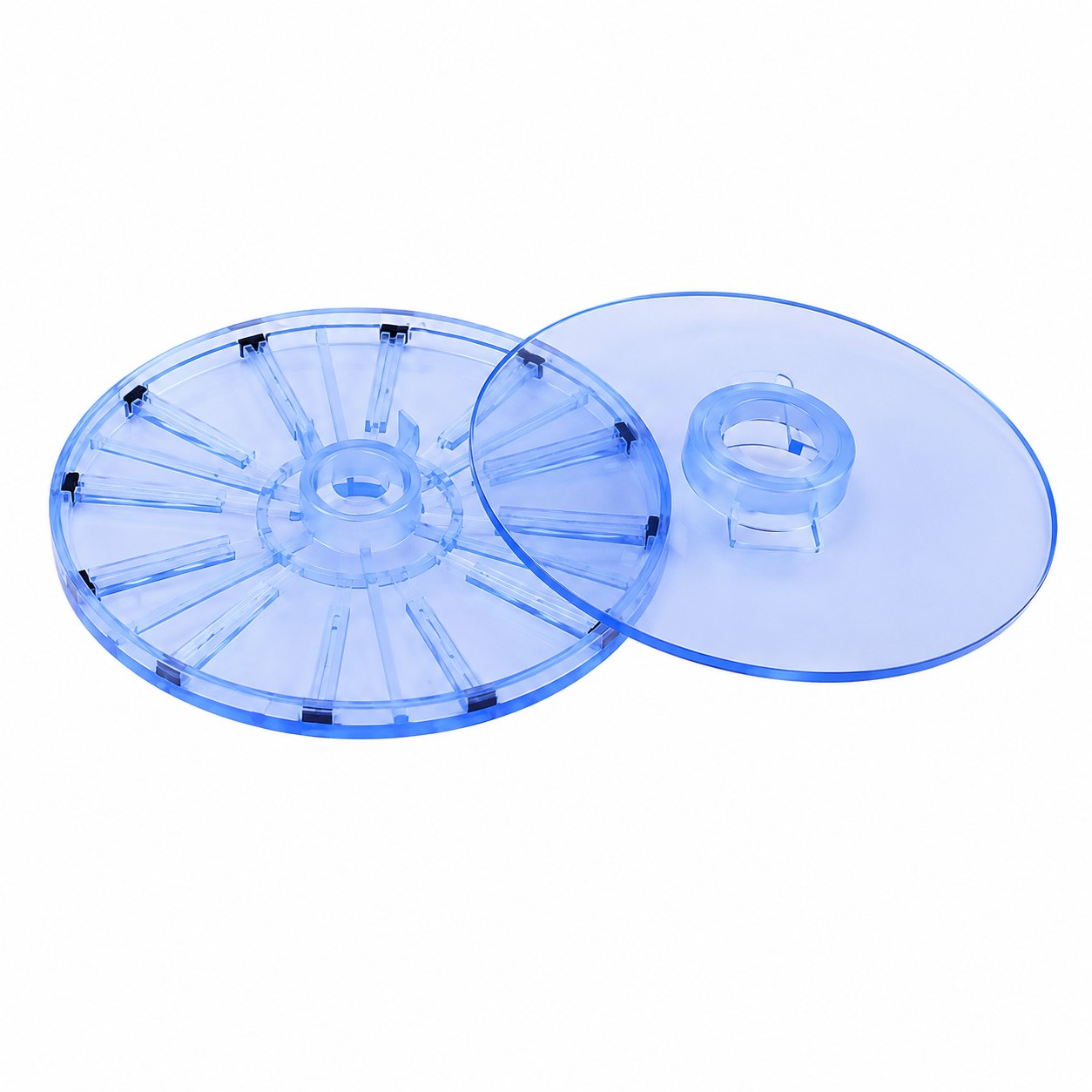

• Tool-free snap-on rotor design for quick and easy rotor replacement.

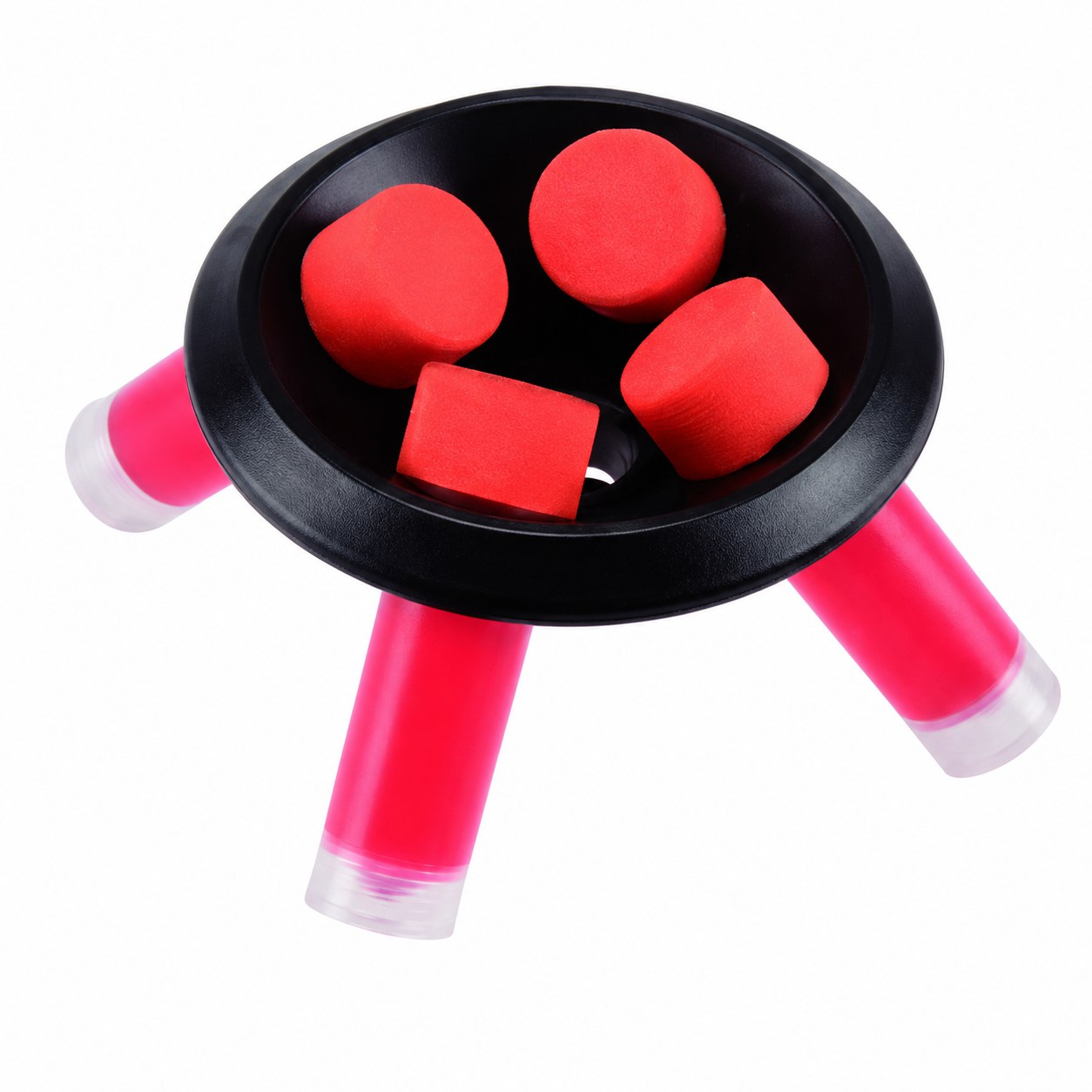

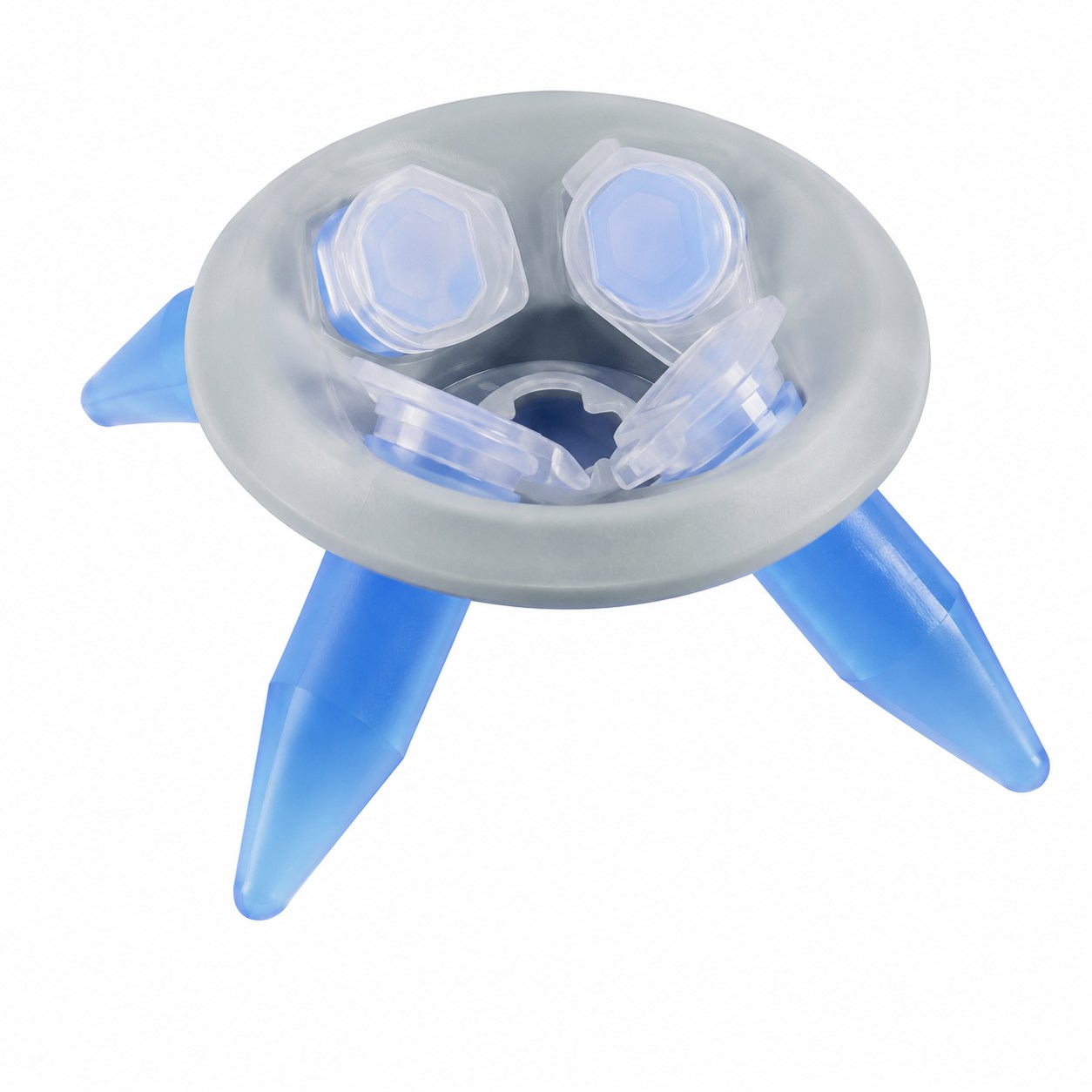

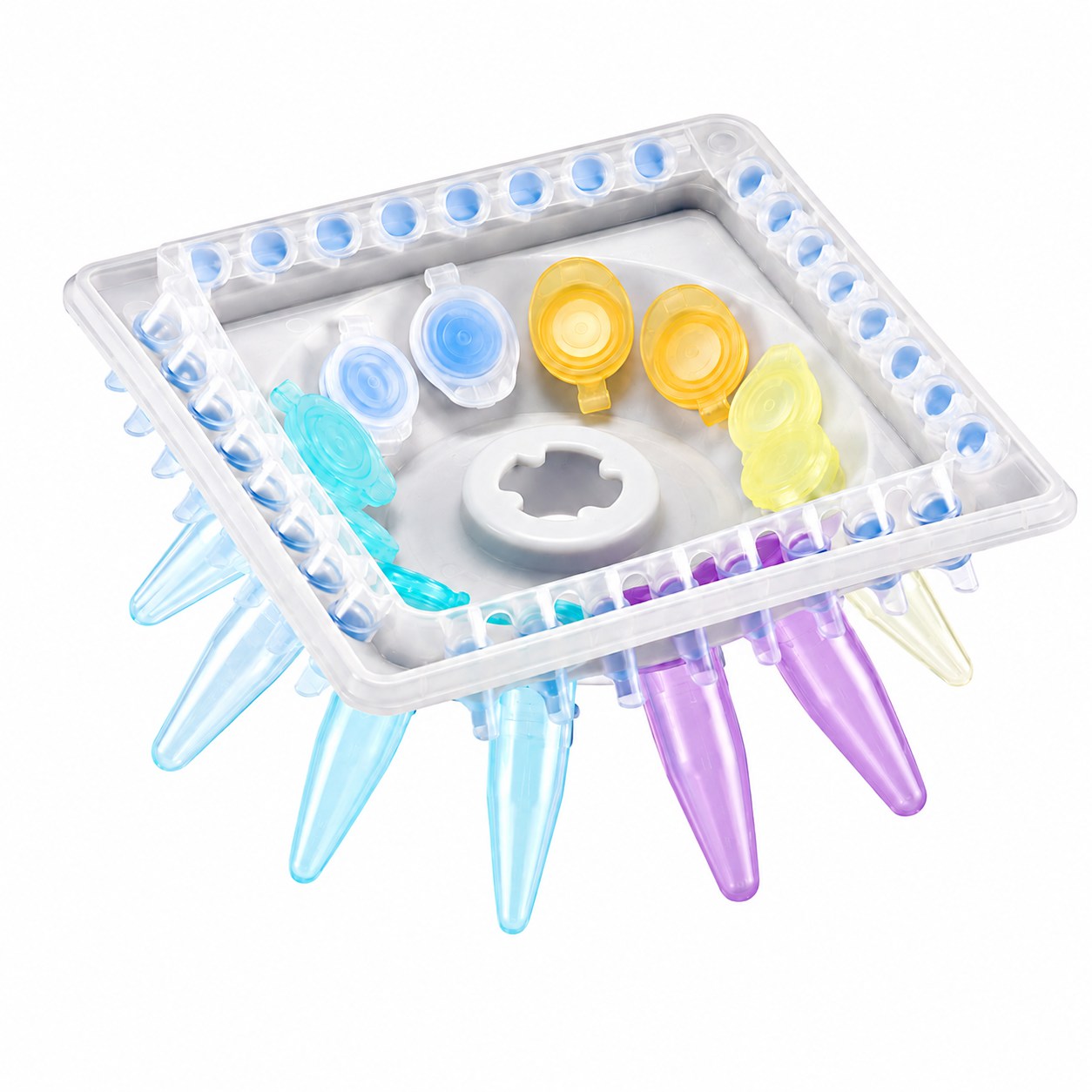

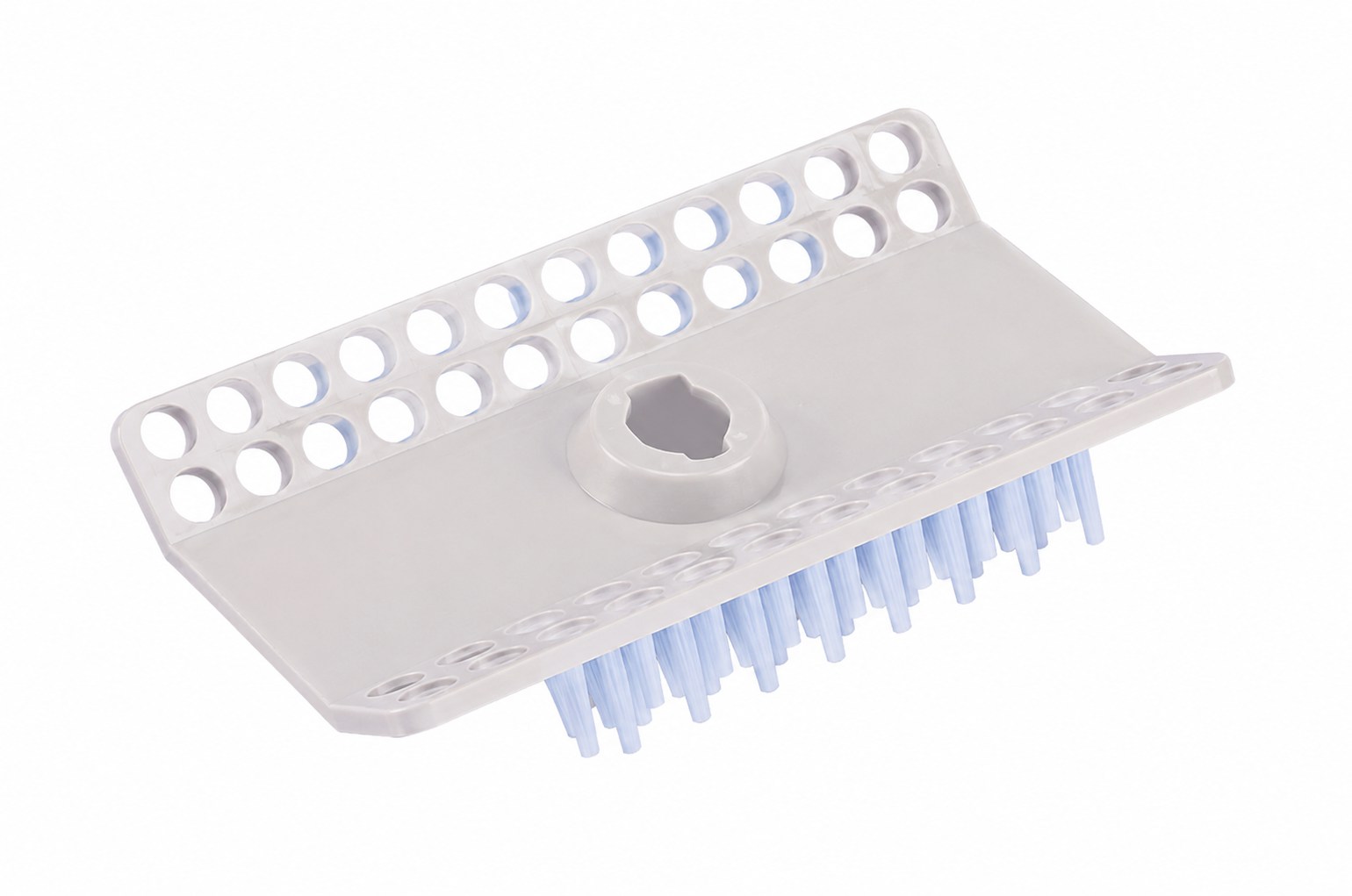

• Universal tube rotor compatible with multiple tube types, reducing the need to change rotors.

• RSS vibration-damping material ensures stable operation. The 360° rounded chamber minimizes airflow resistance and heat buildup; noise level ≤60 dB.

• Lid protection, overspeed protection, and imbalance detection provide real-time monitoring. Audible alarms, automatic stopping, and LCD error codes are activated in case of faults or imbalance.

Main Technical Parameters
