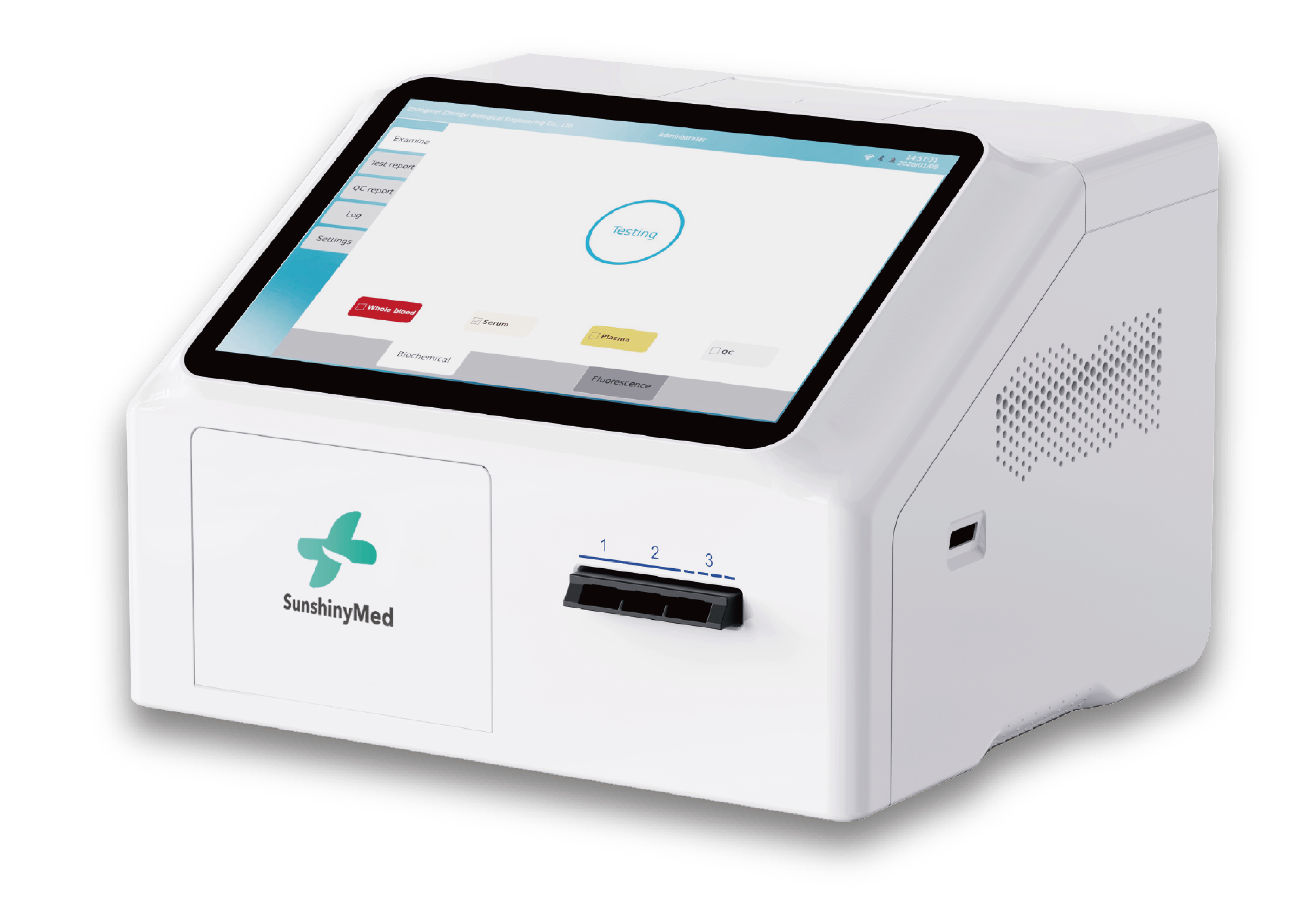

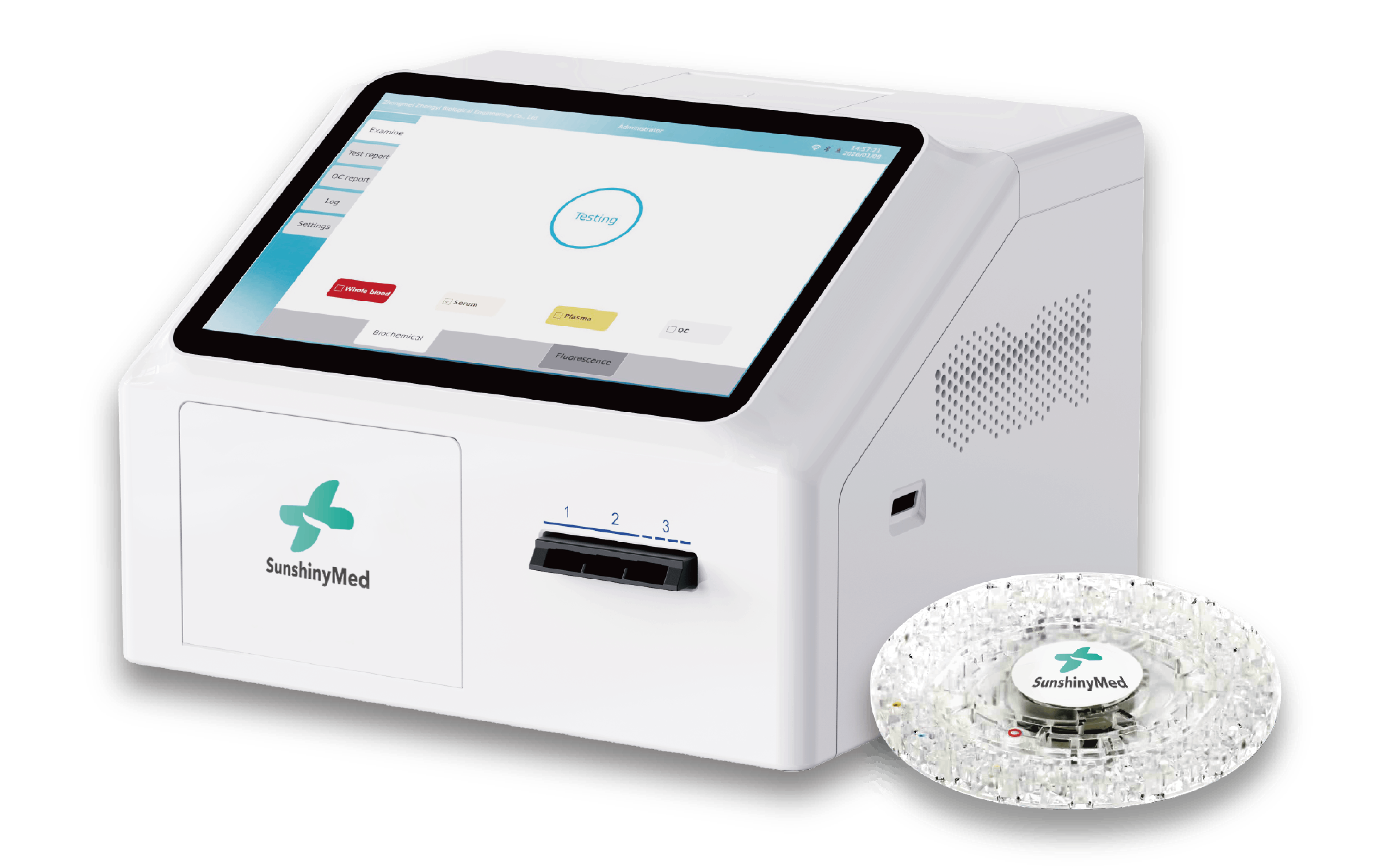

Fully Automated Multi-function Analyzer
The TMFs1000V is a fully automated testing device that highly integrates chemical analysis and fluorescence immunoassay detection. This instrument is easy to operate, significantly improves testing efficiency, and greatly reduces the daily testing workload in veterinary clinics. With its compact design, high level of integration, built-in intelligent real-time quality control system, and advanced technology, it provides veterinarians with accurate and reliable test results. Therefore, the TMFs1000V is an ideal laboratory solution for veterinary clinics and hospitals.
Product Parameters
| Production Name | TMFs1000V Fully Automated Multi-function Analyzer |
Detection Principles | Biochemical and coagulation parameters: spectrophotometry, transmission turbidimetry, dry chemistry method; Immunoassay parameters: time-resolved fluorescence immunoassay (TRFIA) |
Sample Types | Biochemical parameters: lithium heparin anticoagulated whole blood, plasma, serum, peripheral blood Immunoassay parameters: plasma, serum, urine, feces, secretions |
Detection Time | Biochemistry: 12 minutes per sample Immunoassay: 5–10 minutes per sample |
Sample Volume | Biochemistry: 90–100 µL Coagulation: 60 µL Peripheral blood: 40 µL Immunoassay: 5–100 µL |
| Data Interfaces | 4 USB ports, Bluetooth, Wi-Fi, 4G module |
| Display | 10-inch capacitive touch IPS display, multilingual selection |
Result Output | On-screen display, Built-in thermal printer, External general-purpose printer |
| Test Wavelengths | 340, 405, 450, 505, 546, 600, 630, 850nm |
| Power Supply | 100–240V, 24V, 60W |
| Dimensions (mm) | 308 mm × 260 mm × 235 mm |
| Internal Storage | No less than 100,000 sets of sample data |
| Weight | 8.2 kg |
